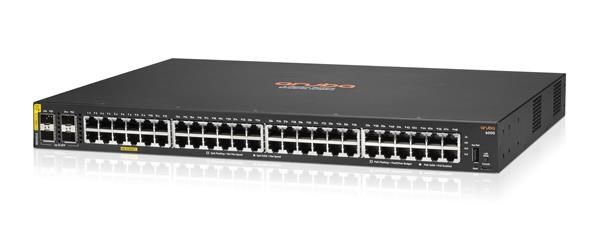

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ether...

Dostupnost: Skladem více než 5 ks

Cena bez DPH: 21 718 Kč

Cena s DPH: 26 278 Kč

Množství:

Základní parametry

Parametr	Hodnota	Parametr	Hodnota
Aktivní prvky LAN	PoE switche	Počet PoE Out portů	48
Počet RJ45 1Gbps	48	Typ PoE	PoE Out

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

HPE Aruba CX 6000 48G PoE Switch - Specifications

Product Number	R8N85A
Differentiator	48x 10/100/1000BASE-T ports 4x 1G/1G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host Port
Ports	48x 10/100/1000BASE-T ports, 4x 1G SFP ports
Memory and Processor	Dual Core ARM Cortex A9 @ 1016 MHz 8 GB DDR3 (max) 16 GB eMMC
Latency	1 Gbps: 1.9 µSec
Throughput	77.3 Mpps
Switching Capacity	104 Gbps
PoE Capability	370W Class 4 PoE/PoE+
Routing Capabilities	Static
Input Voltage	100–127 VAC / 200–240 VAC
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) Derate -1°C per 1000 ft (305 m) from 5000 ft to 10000 ft (3.0 km)
Power Consumption	Max (w/o PoE): 45W Max (with PoE): 480W
Dimensions (metric)	4.4 x 44.2 x 30.5 cm
Weight	5.0 kg

HPE Aruba CX 6000 Series Switch Comparison

Model Overview
Model	R8N85A 48G PoE	R8N86A 48G	R8N87A 24G PoE
Ports	48x 10/100/1000BASE-T, 4x 1G SFP	48x 10/100/1000BASE-T, 4x 1G SFP	24x 10/100/1000BASE-T, 4x 1G SFP
USB Ports	1x USB-C Console, 1x USB Type-A Host
PoE	370W (Class 4)	None	370W (Class 4)
Power Supply	Fixed
Fans	Fixed
Dimensions (cm)	4.39 x 44.2 x 30.48	4.39 x 44.2 x 24.74	4.39 x 44.2 x 26.82
Weight (kg)	5.02	3.42	4.19

Environmental & Electrical
Operating Temp	0°C to 45°C (up to 1.5 km); Derate -1°C per 1000 ft up to 3 km
Humidity (Op/Storage)	15% to 95% @ 40°C (Op), 15% to 90% @ 65°C (Storage)
Altitude (Op/Non-Op)	Max Operating: 10,000 ft; Max Non-Operating: 15,000 ft
Frequency	50 / 60 Hz
Voltage	100–127 VAC / 200–240 VAC
Current	4.9 A / 2.4 A	0.8 A / 0.5 A	4.6 A / 2.3 A
Power (230 VAC)	Idle: 30.6W Max: 45W / 480W (PoE)	Idle: 20.6W Max: 44.2W	Idle: 22.9W Max: 32.7W / 455W (PoE)

Certifications
Safety	IEC / EN / UL / CSA 62368-1 (2014/2018)
Emissions	VCCI, CNS, FCC, EN 55032, ICES, AS/NZS CISPR 32 (Class A)
Laser	IEC / EN 60825-1:2014 Class 1 (Transceivers)
Immunity	CISPR 35, IEC 61000-4-x Series, EN 55035
