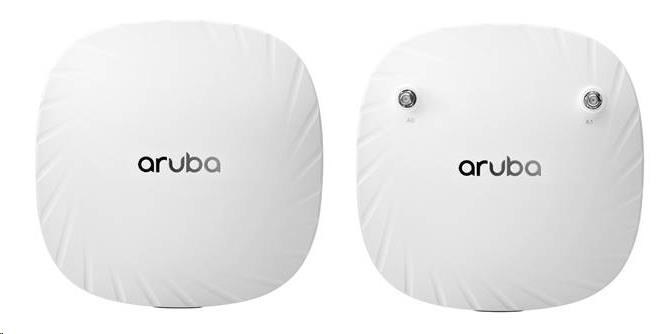

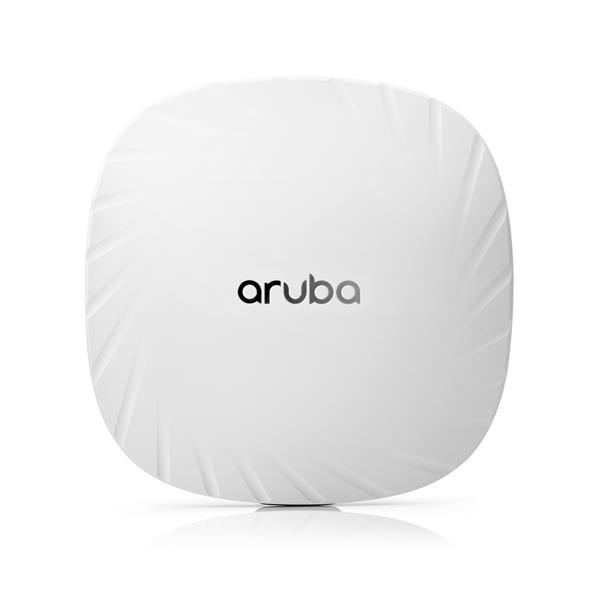

Aruba AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP R2H28A RENEW

Aruba AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP R2H28A RENEW

These affordable Wi-Fi 6 access points provide a high-performance connection for everyone. With a maximum aggregated data rate of 1.77 Gbps (1.774 Gbps), they provide the speed and reliability needed for places and workplaces such as schools, midsize offices and retail stores. The 500 Series APs are also designed to optimize user comfort by maximizing Wi-Fi efficiency and dramatically reducing transmission time between clients.

• 1.77 Gbps maximum throughput
• WPA3 security and enhanced open security
• Built-in technology that solves problematic problems for Wi-Fi 6 and Wi-Fi 5 clients
• OFDMA and MU-MIMO to increase efficiency for multiple users
• Bluetooth 5 and Zigbee support with IoT support

Technical parameters

• Standard: 802.11a / n / ac / ax
• Speed: 1774 Mb / s
• Ports: 1 x 10/100/1000 BASE-T
• Use: Inside
• Antennas: External
• Detachable antenna: No.

Link to the manufacturer's website: https://www.arubanetworks.com/assets/ds/DS_AP500Series.pdf

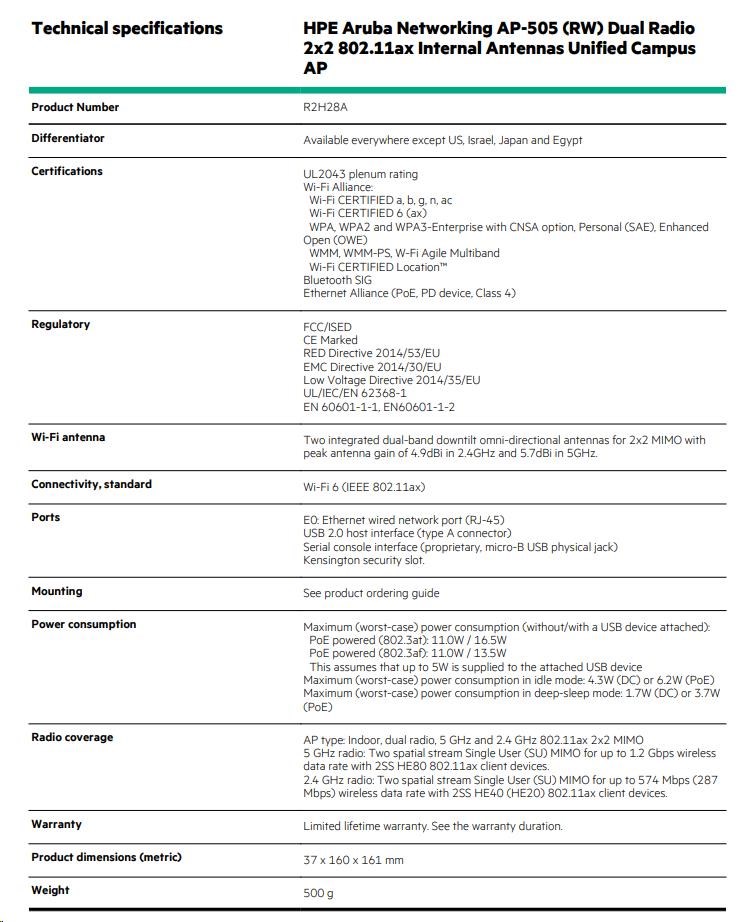

Technical specifications HPE Aruba Networking AP-505 (RW) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP Product Number R2H28A Differentiator Available everywhere except US, Israel, Japan and Egypt Certifications UL2043 plenum rating Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, Class 4) Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 Wi-Fi antenna Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz. Connectivity, standard Wi-Fi 6 (IEEE 802.11ax) Ports E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot. Mounting See product ordering guide Power consumption Maximum (worst-case) power consumption (without/with a USB device attached): PoE powered (802.3at): 11.0W / 16.5W PoE powered (802.3af): 11.0W / 13.5W This assumes that up to 5W is supplied to the attached USB device Maximum (worst-case) power consumption in idle mode: 4.3W (DC) or 6.2W (PoE) Maximum (worst-case) power consumption in deep-sleep mode: 1.7W (DC) or 3.7W (PoE) Radio coverage AP type: Indoor, dual radio, 5 GHz and 2.4 GHz 802.11ax 2x2 MIMO 5 GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices. 2.4 GHz radio: Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices. Warranty Limited lifetime warranty. See the warranty duration. Product dimensions (metric) 37 x 160 x 161 mm Weight 500 g
